Highlights
Air and electricity supply in one hose
Temperature stepless adjustable by potentiometer
For push-on or screw-on nozzles depending on version
Air is supplied by a separate blower (e.g. Oval-HB), a side channel blower or compressor with pressure reducing valve
Description

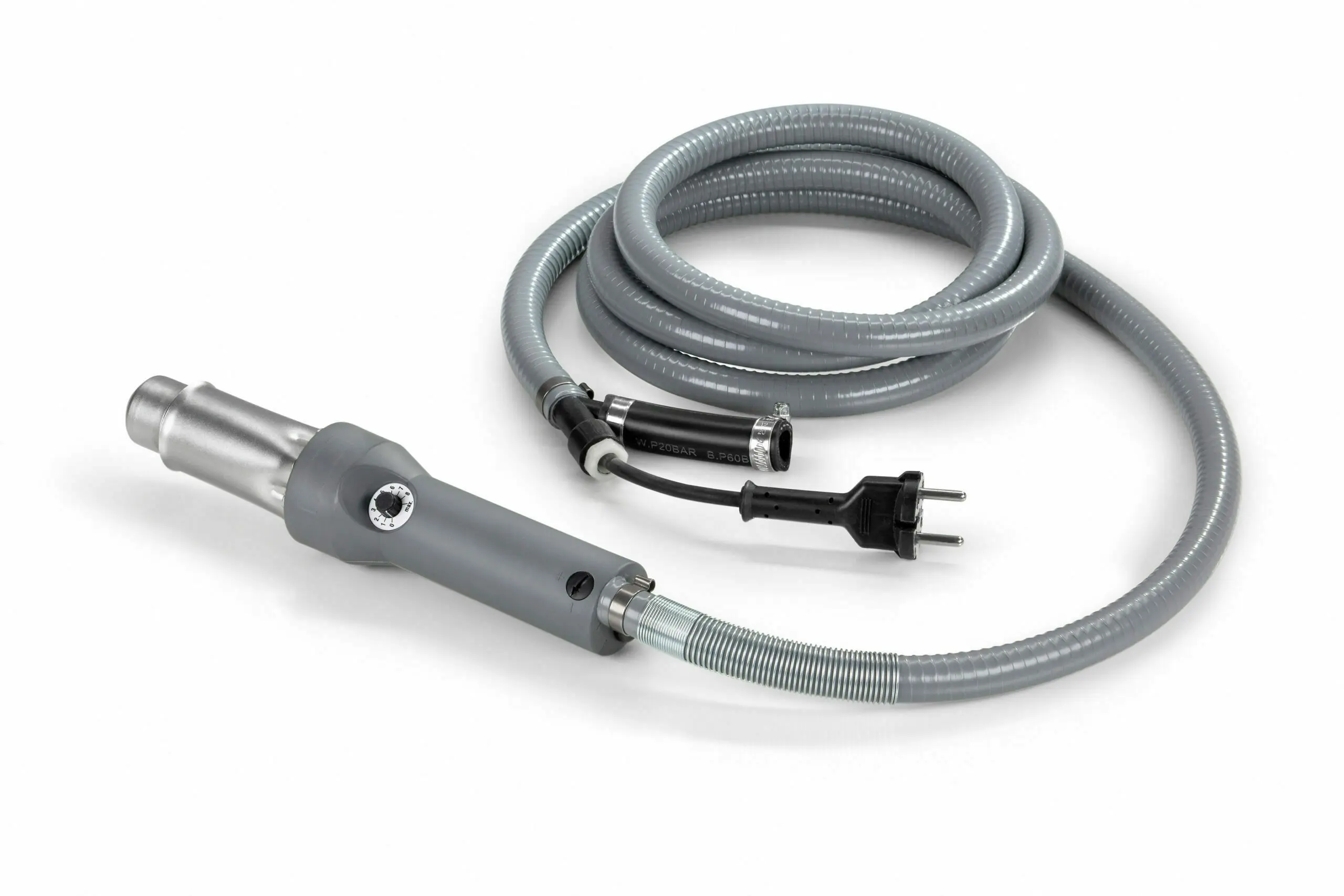

The hot air welding gun MINI-C-electronic with air and electricity supplied in a combined hose. For an external air supply, such like the blower Oval-HB, a side channel compressor or compressor with pressure reducer can be used.
In contrast to our MINI-electronic welding gun, the MINI-C-electronic is supplied with air and electricity via a single hose. The hot air tool features an anti-knicking protection at the hose connection
Due to its portability and light weight, the insulated welding gun MINI-C-electronic is perfect for tank builders and plastic fitters. The electronic control allow the 1500 W 230 V heating power to be electronically maintained at a constant 20 to 700 °C temperature range.
The device needs an external source of air, like a side channel blower, blower, or compressor. In addition, we offer our portable hand blower Oval-HB , which can deliver the necessary air on construction sites and outdoors due to its handiness.
Numerous accessories are available for the MINI-C electronic welding gun to weld plastic plates, pipes, components, and containers. . A nozzle adapter M10 or M14 can also be added to the welding gun if necessary. These nozzles permit the use of screw-on speed welding nozzles, which are often used in plastic and container construction because of their high stability.
The additional hand blower provides the necessary air volume outside and on construction sites.
Technical specifications
Power:
1500W 230V; 1300W 120V
Frequency:
50/60 Hz
Temperature:
20 - 700°C
Air requirement:
80 - 250 litres/minute
Dimensions:
Ø 250 x 55 mm, handle Ø 40 mm
Weight:
0.395 kg with 3m connection cable
Conformity mark
CE; EAC
Protection class:
II /
Accessories
- Nozzles
- Speed welding nozzles
- Pressure rollers
- General Accessories
- Tool case
- Heating elements
Item no. 4000
Tubular nozzle 5mm
Item no. 4002.90
Angle nozzle 20mm, 90° push-fit
Item no. 4005
Tubular nozzle 15mm
Item no. 4060
Wide slot nozzle 60mm
Item no. 4002
Wide slot nozzle 20mm
Item no. 4003
Wide slot nozzle 40mm
Item no. 4007
Nozzle Adapter for M10 screw-fit nozzles
Item no. 4090
Wide slot nozzle 90mm
Item no. 4002.15
Angle nozzle 20mm, 15° push-fit
Item no. 4003.60
Angle nozzle 40mm, 60° push-fit
Item no. 4008
Nozzle Adapter for M14 screw-fit nozzles
Item no. 5016
Spoon reflector
Item no. 4002.60
Angle nozzle 20mm, 60° push-fit
Item no. 4004
Wide slot perforated nozzle 40mm
Item no. 4000.V
5mm tubular elongated 150mm nozzle
Item no. 9701
Tubular nozzle 5mm, re-inforced
Item no. 5000
5.7mm triangular speed weld nozzle (for nozzle 4000)
Item no. 5012
5mm round speed weld nozzle (for nozzle 4000)
Item no. 5015
Tacking jet (for nozzle 4000)
Item no. 5002
5.7mm triangular speed weld nozzle (for nozzle 4007)
Item no. 5006
4mm round speed weld nozzle (for nozzle 4007)
Item no. 5017
Tacking jet curved (for nozzle 4007)
Item no. 5001
7mm triangular speed weld nozzle (for nozzle 4007)
Item no. 5013
5mm triangular speed weld nozzle (for nozzle 4000)
Item no. 5003
7mm triangular speed weld nozzle (for nozzle 4007)
Item no. 5007
5mm round speed weld nozzle (for nozzle 4007)
Item no. 5010
3mm round speed weld nozzle (for nozzle 4000)
Item no. 5014
7.5mm triangular speed weld nozzle (for nozzle 4000)
Item no. 5004
Tacking jet (for nozzle 4007)
Item no. 5008
5mm round speed weld nozzle (for nozzle 4007)
Item no. 5011
4mm round speed weld nozzle (for nozzle 4000)
Item no. 5022
5mm round speed weld nozzle for polyolefin (for nozzle 4000)
Item no. 5005
3mm round speed weld nozzle (for nozzle 4007)
Item no. 5009
7.5mm triangular speed weld nozzle (for nozzle 4007)
Item no. 6991
28mm PTFE pressure roller with ball bearings
Item no. 6995
45mm 45° silicone pressure roller with ball bearings
Item no. 7000
45mm silicone pressure roller, double arm
Item no. 7006
45mm 45° silicone pressure roller
Item no. 6992
45mm PTFE pressure roller with ball bearings
Item no. 6996
80mm silicone pressure roller with ball bearings
Item no. 7001
45mm silicone pressure roller, single arm
Item no. 7007
Pressure roller for custom seal 7mm
Item no. 6993
Brass penny roller 30mm
Item no. 6997
45mm silicone pressure roller with ball bearings, single arm
Item no. 7002
80mm silicone pressure roller
Item no. 7009
Pressure roller for custom seal 9mm
Item no. 6994
28mm silicone pressure roller with ball bearings
Item no. 6998
45mm silicone pressure roller with ball bearings, double arm
Item no. 7005
5mm welding rod pressure roller
Item no. 5021
Trimming guide
Item no. 7018
Trimming knife
Item no. 7010
Cutter
Item no. 7020
Seam trimmer
Item no. 7011
Hand groover
Item no. 7026
Brass cleaning brush for speed weld nozzles 3-5mm
Item no. 7014
Seam probe tester
Item no. 7025
Tool case
Item no. 2007
Heating element 230V 1500W
Item no. 4011
Insulating sleeve
Item no. 2008
Heating element 120V 1300W
Application areas
Manufacture of containers and plastic tanks
Plastic repair
Production of ventilation pipes
Soldering & desoldering of electronics and usage in electromechanics industry
Cable shrinkage
Use in mechanical engineering
Construction and repair of aquaculture and boats
