Highlights



















Particularly light and handy












Infinitely adjustable temperature












For push-on or screw-on nozzles depending on version












Air supply by the blower Oval-HB, side channel compressor or compressor with pressure reducer
Description

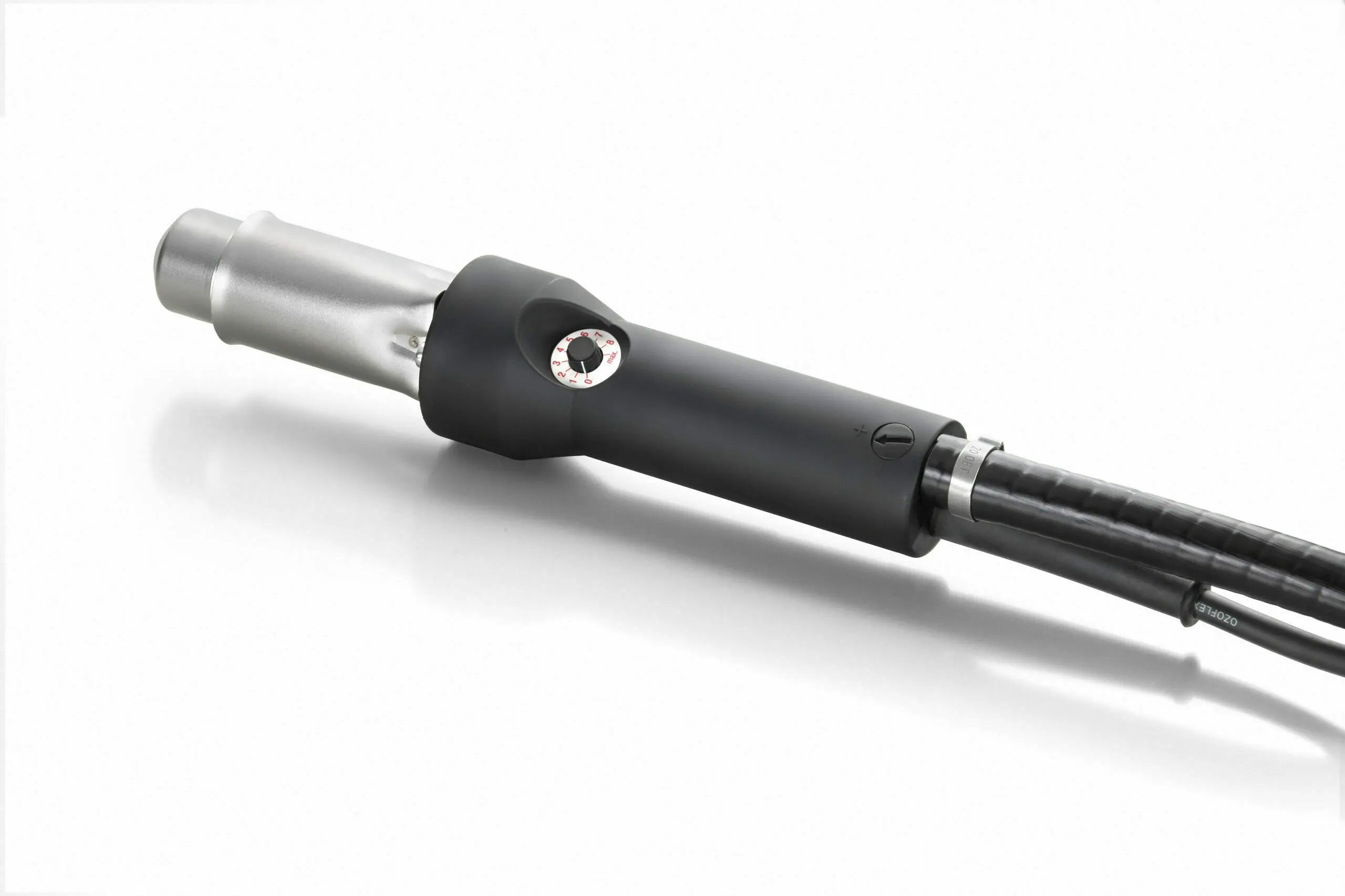

The compact and lightweight MINI-electronic welding gun is ideal for tank builders and plastic fitters Coupled with blower Oval-HB, the welding gun is perfect for external mounting applications.
Due to its light weight and handiness, the protection-insulated MINI-Electronic welding gun is ideally suited for plastic locksmiths and container builders. The electronic controls allow the 1500 W 230 V heating power to be electronically maintained at a constant 20 to 700 °C temperature range. Furthermore, the required amount of air can be regulated individually using the additional rotary knob.
The device needs an external source of air, like a side channel blower, blower, or compressor. In addition, we offer our portable hand blower Oval-HB, which can deliver the necessary air on construction sites and in outdoor use due to its handiness.
The MINI-electronic welding gun can be equipped with numerous accessories to weld plastic plates, pipes, parts and containers. A nozzle adapter M10 or M14 can also be added to the welding gun if necessary. These nozzle permits the use of screw-on speed welding nozzles, which are often used in plastic and container construction because of their high stability.
The additional hand blower provides the necessary air volume outside and on construction sites.
Technical specifications







Power:
1500W 230V; 1300W 120V
Frequency:
50/60 Hz
Temperature:
20 - 700°C
Air requirement:
80 - 250 litres/minute
Dimensions:
Ø 250 x 55 mm, handle Ø 40 mm
Weight:
0.395 kg with 3m connection cable
Conformity mark
CE; EAC
Protection class:
II /


Accessories







- Nozzles
- Speed welding nozzles
- Pressure rollers
- General Accessories
- Tool case
- Heating elements


Item no. 4000
Tubular nozzle 5mm


Item no. 4002.90
Angle nozzle 20mm, 90° push-fit


Item no. 4005
Tubular nozzle 15mm


Item no. 4060
Wide slot nozzle 60mm


Item no. 4002
Wide slot nozzle 20mm


Item no. 4003
Wide slot nozzle 40mm



Item no. 4007
Nozzle Adapter for M10 screw-fit nozzles


Item no. 4090
Wide slot nozzle 90mm


Item no. 4002.15
Angle nozzle 20mm, 15° push-fit


Item no. 4003.60
Angle nozzle 40mm, 60° push-fit



Item no. 4008
Nozzle Adapter for M14 screw-fit nozzles


Item no. 5016
Spoon reflector


Item no. 4002.60
Angle nozzle 20mm, 60° push-fit


Item no. 4004
Wide slot perforated nozzle 40mm


Item no. 4000.V
5mm tubular elongated 150mm nozzle


Item no. 9701
Tubular nozzle 5mm, re-inforced


Item no. 5000
5.7mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5012
5mm round speed weld nozzle (for nozzle 4000)


Item no. 5015
Tacking jet (for nozzle 4000)


Item no. 5002
5.7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5006
4mm round speed weld nozzle (for nozzle 4007)


Item no. 5017
Tacking jet curved (for nozzle 4007)


Item no. 5001
7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5013
5mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5003
7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5007
5mm round speed weld nozzle (for nozzle 4007)


Item no. 5010
3mm round speed weld nozzle (for nozzle 4000)


Item no. 5014
7.5mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5004
Tacking jet (for nozzle 4007)


Item no. 5008
5mm round speed weld nozzle (for nozzle 4007)


Item no. 5011
4mm round speed weld nozzle (for nozzle 4000)


Item no. 5022
5mm round speed weld nozzle for polyolefin (for nozzle 4000)


Item no. 5005
3mm round speed weld nozzle (for nozzle 4007)


Item no. 5009
7.5mm triangular speed weld nozzle (for nozzle 4007)


Item no. 6991
28mm PTFE pressure roller with ball bearings


Item no. 6995
45mm 45° silicone pressure roller with ball bearings


Item no. 7000
45mm silicone pressure roller, double arm


Item no. 7006
45mm 45° silicone pressure roller


Item no. 6992
45mm PTFE pressure roller with ball bearings


Item no. 6996
80mm silicone pressure roller with ball bearings


Item no. 7001
45mm silicone pressure roller, single arm


Item no. 7007
Pressure roller for custom seal 7mm


Item no. 6993
Brass penny roller 30mm


Item no. 6997
45mm silicone pressure roller with ball bearings, single arm


Item no. 7002
80mm silicone pressure roller


Item no. 7009
Pressure roller for custom seal 9mm


Item no. 6994
28mm silicone pressure roller with ball bearings


Item no. 6998
45mm silicone pressure roller with ball bearings, double arm


Item no. 7005
5mm welding rod pressure roller


Item no. 5021
Trimming guide


Item no. 7018
Trimming knife


Item no. 7010
Cutter


Item no. 7020
Seam trimmer


Item no. 7011
Hand groover


Item no. 7026
Brass cleaning brush for speed weld nozzles 3-5mm


Item no. 7014
Seam probe tester


Item no. 7025
Tool case



Item no. 2007
Heating element 230V 1500W


Item no. 4011
Insulating sleeve



Item no. 2008
Heating element 120V 1300W
Application areas



















Manufacture of containers and plastic tanks












Plastic repair












Production of ventilation pipes












Soldering & desoldering of electronics and usage in electromechanics industry












Cable shrinkage












Use in mechanical engineering












Construction and repair of aquaculture and boats
