Quick-L with heat stages
Highlights

Handy and lightweight heat gun

Ideal for car upholsterers and tarpaulin processors

Economical and uncomplicated hand welding tool

Has 2 fixed heating stages with additional cold stage
Description

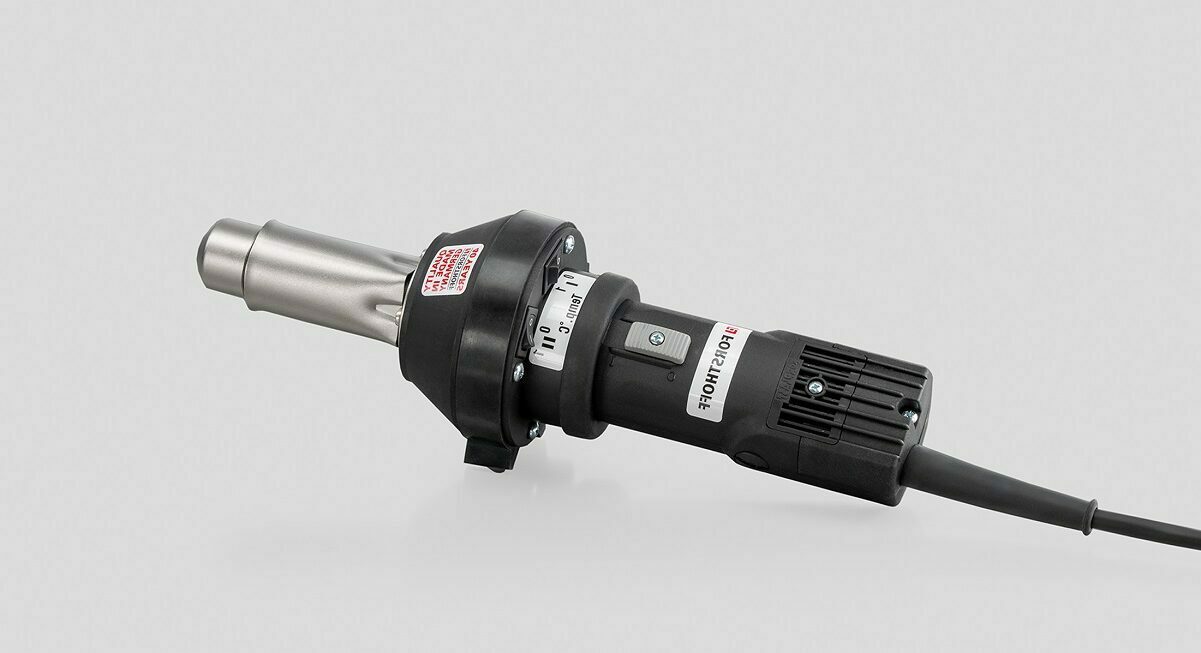

The Quick-L with heat stages is the handy, lightweight and simple hot air welding device for the tarpaulin processor.
This hand welder is a modification of the proven Quick-L-electronic model. Instead of the continuously variable temperature setting known in this case, the Quick-L has 2 fixed heating stages with an additional cold stage. Since the tarpaulin, tent and awning welds are often carried out with only one type of material and in a single welding width, a simple apparatus with heating stages is suitable for the processor.
The heating capacity of the device is adapted to the mounting nozzles of 20 mm or 40 mm width required by the tarpaulin manufacturer. The heating power in conjunction with the flat nozzle 20 mm is 900W 230V and with the flat nozzle 40 mm: 1500W 230V or 1300W 120V.
As with our other hot air welding tools, the carbon brush service life is 1,500 hours. The collector brushes of the motor can be changed several times and thus enable continuous operation of the device. The carbon brushes can be easily changed from the outside without opening the appliance. In addition, all our units are equipped with a shut-off device, which prevents damage to the motor when the carbon brushes are used up.
The QUICK-L tarpaulin welding tool with a wide range of accessories for welding car tarpaulins, tents and awning materials.
Technical specifications
Voltage:
230V; 120V
Power:
depending on the attachment nozzle 900W 230V or 1500W 230V; 1300W 120V
Frequency:
50/60 Hz
Temperature:
up to max. 700°C;
adjustable n 2 fixed heating levels
Air flow:
300 l/min
Dimensions:
Ø 320 x 95 mm, handle Ø 48 mm
Weight:
1.2 kg with 3m connecting cable
Conformity mark
CE; EAC
Protection class:
II /
Accessories
- Nozzles
- Pressure rollers
- General Accessories
- Tool case
- Heating elements

Item no. 4002
Wide slot nozzle 20mm

Item no. 4003
Wide slot nozzle 40mm

Item no. 6991
28mm PTFE pressure roller with ball bearings

Item no. 6995
45mm 45° silicone pressure roller with ball bearings

Item no. 7000
45mm silicone pressure roller, double arm

Item no. 6992
45mm PTFE pressure roller with ball bearings

Item no. 6996
80mm silicone pressure roller with ball bearings

Item no. 7001
45mm silicone pressure roller, single arm

Item no. 6993
Brass penny roller 30mm

Item no. 6997
45mm silicone pressure roller with ball bearings, single arm

Item no. 7002
80mm silicone pressure roller

Item no. 6994
28mm silicone pressure roller with ball bearings

Item no. 6998
45mm silicone pressure roller with ball bearings, double arm

Item no. 7006
45mm 45° silicone pressure roller

Item no. 5021
Trimming guide

Item no. 7018
Trimming knife

Item no. 7010
Cutter

Item no. 7020
Seam trimmer

Item no. 7011
Hand groover

Item no. 7014
Seam probe tester

Item no. 7025
Tool case

Item no. 2007
Heating element 230V 1500W

Item no. 4011
Insulating sleeve

Item no. 2004
Heating element 230V 900W

Item no. 2008
Heating element 120V 1300W
Application areas

Car upholstery

Tarpaulin manufacturer

Tent manufacturer

Cover tarpaulins

Advertising banner manufacturer
