Highlights



























Popular hot air device for tarpaulin fabricators




















Robust and construction site suitable heat gun




















Continuously adjustable temperature with additional cold stage




















Own powerful air supply
Description

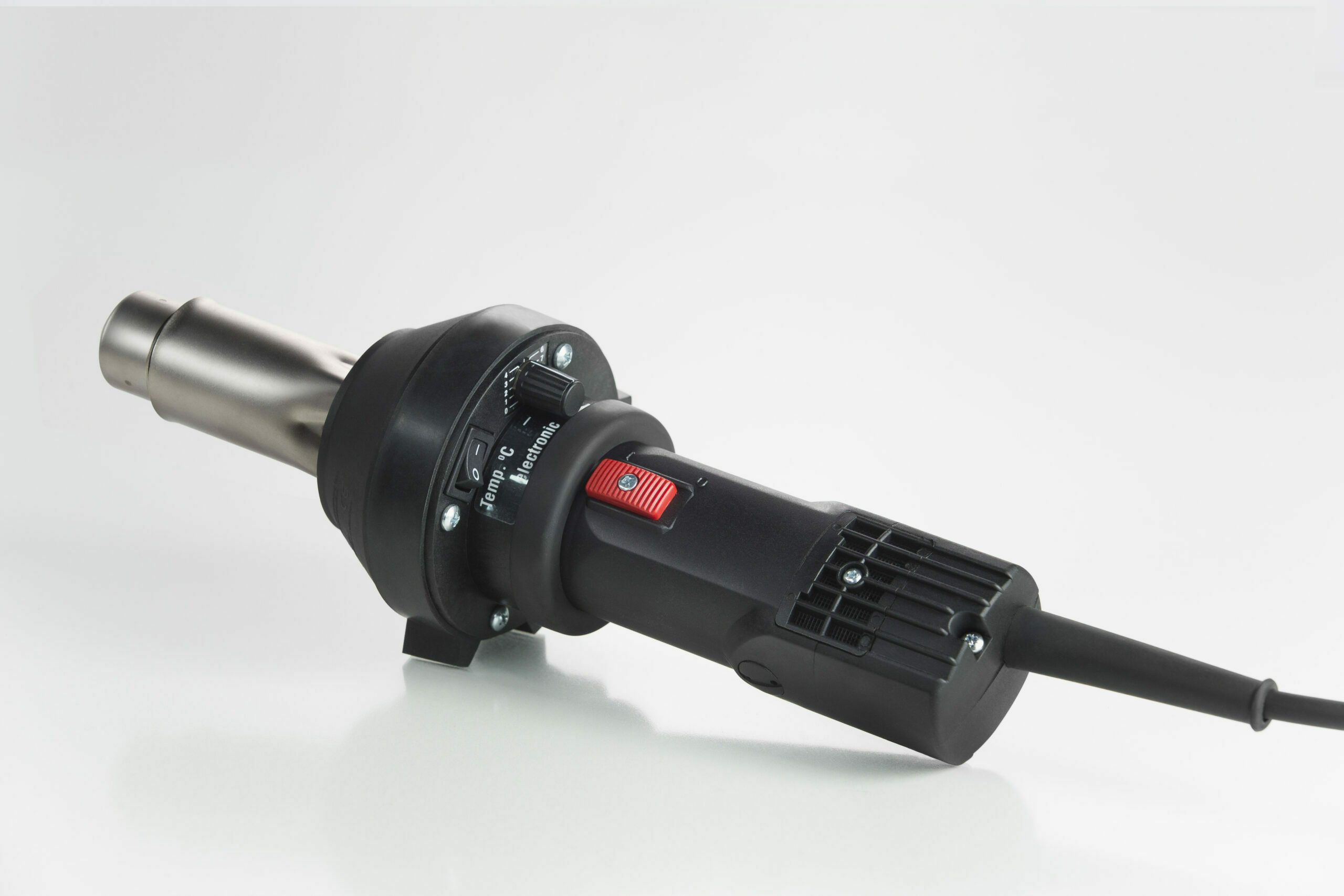

The powerful hot-air device Quick-L-electronic for welding thermoplastics for tarpaulin fabricators, plastic processors, floor layers and many more.
The hot air welding tool Quick-L-Electronic is characterized by its very handy and easy-to-use little handle. In combination with the strong heating power of 1500W 230V and up to 1600W 120V and its low weight, it enables professional and fatigue-free welding.
In addition, the device has a cold stage without having to adjust the heating preselection. The collector carbon of the motor can be changed several times, thus enabling continuous operation of the device. Changing the carbon brushes is easy from the outside, without opening the device complete. The carbon brushes only have to be replaced after around 1,500 hours. The carbon brushes of our manual welding devices are equipped with a shut-off device that prevents damage to the motor after the carbon has been used up.
The air-cooled basic nozzle is suitable for numerous different nozzle shapes. The Quick-L-electronic is an universal device for welding all thermoplastics, technical textiles, tarpaulins, pond liners, roofing liners and liners in swimming pool construction.
Technical specifications







Voltage:
230V; 120V
Power:
max. 1600W
Frequency:
50/60 Hz
Temperature:
20 - 700°C
Air flow:
300 l/min
Dimensions:
Ø 320 x 95 mm, handle Ø 48 mm
Weight:
1.2 kg with 3m connecting cable
Conformity mark
CE; EAC
Protection class:
II /


Accessories







- Nozzles
- Speed welding nozzles
- Pressure rollers
- General Accessories
- Tool case
- Heating elements


Item no. 4000
Tubular nozzle 5mm


Item no. 4002.90
Angle nozzle 20mm, 90° push-fit


Item no. 4005
Tubular nozzle 15mm


Item no. 4060
Wide slot nozzle 60mm


Item no. 4002
Wide slot nozzle 20mm


Item no. 4003
Wide slot nozzle 40mm



Item no. 4007
Nozzle Adapter for M10 screw-fit nozzles


Item no. 4090
Wide slot nozzle 90mm


Item no. 4002.15
Angle nozzle 20mm, 15° push-fit


Item no. 4003.60
Angle nozzle 40mm, 60° push-fit



Item no. 4008
Nozzle Adapter for M14 screw-fit nozzles


Item no. 5016
Spoon reflector


Item no. 4002.60
Angle nozzle 20mm, 60° push-fit


Item no. 4004
Wide slot perforated nozzle 40mm


Item no. 4000.V
5mm tubular elongated 150mm nozzle


Item no. 9701
Tubular nozzle 5mm, re-inforced


Item no. 5000
5.7mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5012
5mm round speed weld nozzle (for nozzle 4000)


Item no. 5015
Tacking jet (for nozzle 4000)


Item no. 5002
5.7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5006
4mm round speed weld nozzle (for nozzle 4007)


Item no. 5017
Tacking jet curved (for nozzle 4007)


Item no. 5001
7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5013
5mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5003
7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5007
5mm round speed weld nozzle (for nozzle 4007)


Item no. 5010
3mm round speed weld nozzle (for nozzle 4000)


Item no. 5014
7.5mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5004
Tacking jet (for nozzle 4007)


Item no. 5008
5mm round speed weld nozzle (for nozzle 4007)


Item no. 5011
4mm round speed weld nozzle (for nozzle 4000)


Item no. 5022
5mm round speed weld nozzle for polyolefin (for nozzle 4000)


Item no. 5005
3mm round speed weld nozzle (for nozzle 4007)


Item no. 5009
7.5mm triangular speed weld nozzle (for nozzle 4007)


Item no. 6991
28mm PTFE pressure roller with ball bearings


Item no. 6995
45mm 45° silicone pressure roller with ball bearings


Item no. 7000
45mm silicone pressure roller, double arm


Item no. 7006
45mm 45° silicone pressure roller


Item no. 6992
45mm PTFE pressure roller with ball bearings


Item no. 6996
80mm silicone pressure roller with ball bearings


Item no. 7001
45mm silicone pressure roller, single arm


Item no. 7007
Pressure roller for custom seal 7mm


Item no. 6993
Brass penny roller 30mm


Item no. 6997
45mm silicone pressure roller with ball bearings, single arm


Item no. 7002
80mm silicone pressure roller


Item no. 7009
Pressure roller for custom seal 9mm


Item no. 6994
28mm silicone pressure roller with ball bearings


Item no. 6998
45mm silicone pressure roller with ball bearings, double arm


Item no. 7005
5mm welding rod pressure roller


Item no. 5021
Trimming guide


Item no. 7018
Trimming knife


Item no. 7010
Cutter


Item no. 7020
Seam trimmer


Item no. 7011
Hand groover


Item no. 7026
Brass cleaning brush for speed weld nozzles 3-5mm


Item no. 7014
Seam probe tester


Item no. 7025
Tool case





Item no. 2007
Heating element 230V 1500W





Item no. 2011
Heating element 120V 1600W


Item no. 4011
Insulating sleeve





Item no. 2008
Heating element 120V 1300W





Item no. 2009
Heating element 120V 1650W
Application areas



























Advertising banner welding and tarpaulin welding




















Processing of PVC floor coverings and linoleum




















Repair of car tarpaulins, tents and plastic




















Shrinking of foils, molded parts and cables




















Separating and merging of synthetic threads and fabrics




















Forming of plastic and thermoplastic semi-finished products




















Processing of all thermoplastic hard materials in plastic construction and container construction




















Sterilizing packaging materials or used in food processing




















Removal of plastic press burrs and shine of plastic surfaces




















Sealing pools and ponds




















Use in electromechanical work
























Flat roof membrane welding




















Shrinking of hoses, packaging films




















Construction and repair of aquaculture and boats




















Smoothing pills and dragees
