Highlights

Professional universal hot air welding tool

Robust and construction site suitable heat gun

Continuously adjustable temperature

Double turbine system and easy to change filters
Description
The Forsthoff Oval-Q is a handy and modern hot air tool, which is used as a professional tool for welding, processing, welding, shrinking and shaping a large number of thermoplastics.
The easy-to-clean and visually appealing air filters complement the practical and robust design. Like all manual welding products from Forsthoff production, this newly developed tool also includes a powerful German motor, which is manufactured in our own production facility in Solingen. The double turbine system produces a powerful air output of 280 liters/minute. An ergonomic and narrow handle completes the practical and solid design and enables professional and fatigue-free work.
The successor to our Tube-Q hot air welding tool is the handy and powerful universal welding device for welding all thermoplastics.
The device has a heating capacity of 1500W 230V or 1600W 120V, and constant and absolutely reliable control electronics for temperatures up to 700 °C. The Oval-Q only requires changing the carbon brushes after 1,500 hours. The collector carbons are also equipped with a shut-off device that prevents damage to the motor once the carbon brushes have been used up. The carbon brushes can be changed several times.
The main nozzle is compatible with a large number of attachment nozzles. This makes the Oval-Q a powerful universal hot-air welding device for welding all thermoplastics, welding technical textiles, tarpaulin materials, banner materials, pond liners, roofing liners and liners in swimming pool construction. In addition, it is used to activate, heat, deform and shrink numerous thermoplastic materials.
Technical specifications
Voltage:
230V; 120V
Power:
max. 1600W
Frequency:
50/60 Hz
Temperature:
20 - 700°C
Air flow:
280 l/min
Dimensions:
Ø 334 x 95 mm, handle Ø 58 mm
Weight:
1.4 kg with 3m connection cable
Conformity mark
CE; EAC
Protection class:
II /
Accessories
- Nozzles
- Speed welding nozzles
- Pressure rollers
- General Accessories
- Tool case
- Heating elements

Item no. 4000
Tubular nozzle 5mm

Item no. 4002.90
Angle nozzle 20mm, 90° push-fit

Item no. 4005
Tubular nozzle 15mm

Item no. 4060
Wide slot nozzle 60mm

Item no. 4002
Wide slot nozzle 20mm

Item no. 4003
Wide slot nozzle 40mm

Item no. 4007
Nozzle Adapter for M10 screw-fit nozzles

Item no. 4090
Wide slot nozzle 90mm

Item no. 4002.15
Angle nozzle 20mm, 15° push-fit

Item no. 4003.60
Angle nozzle 40mm, 60° push-fit

Item no. 4008
Nozzle Adapter for M14 screw-fit nozzles

Item no. 5016
Spoon reflector

Item no. 4002.60
Angle nozzle 20mm, 60° push-fit

Item no. 4004
Wide slot perforated nozzle 40mm

Item no. 4000.V
5mm tubular elongated 150mm nozzle

Item no. 9701
Tubular nozzle 5mm, re-inforced

Art-Nr. 5000
Schnellschweissdüse 5,7 mm dreikant, steckbar auf 4000

Art-Nr. 5012
Schnellschweissdüse 5 mm rund, steckbar auf 4000

Art-Nr. 5015
Heftdüse, steckbar auf 4000

Art-Nr. 5002
Schnellschweissdüse 5,7 mm dreikant, schraubbar M10

Art-Nr. 5006
Schnellschweissdüse 4 mm rund, schraubbar M10

Art-Nr. 5017
Heftdüse gebogen, schraubbar M10

Art-Nr. 5001
Schnellschweissdüse 7 mm dreikant, steckbar auf 4000

Art-Nr. 5013
Schnellschweissdüse 5 mm dreikant, steckbar auf 4000

Art-Nr. 5003
Schnellschweissdüse 7 mm dreikant, schraubbar M10

Art-Nr. 5007
Schnellschweissdüse 5 mm rund, schraubbar M10

Art-Nr. 5010
Schnellschweissdüse 3 mm rund, steckbar auf 4000

Art-Nr. 5014
Schnellschweissdüse 7,5 mm dreikant, steckbar auf 4000

Art-Nr. 5004
Heftdüse, schraubbar M10

Art-Nr. 5008
Schnellschweissdüse 5 mm dreikant, schraubbar M10

Art-Nr. 5011
Schnellschweissdüse 4 mm rund, steckbar auf 4000

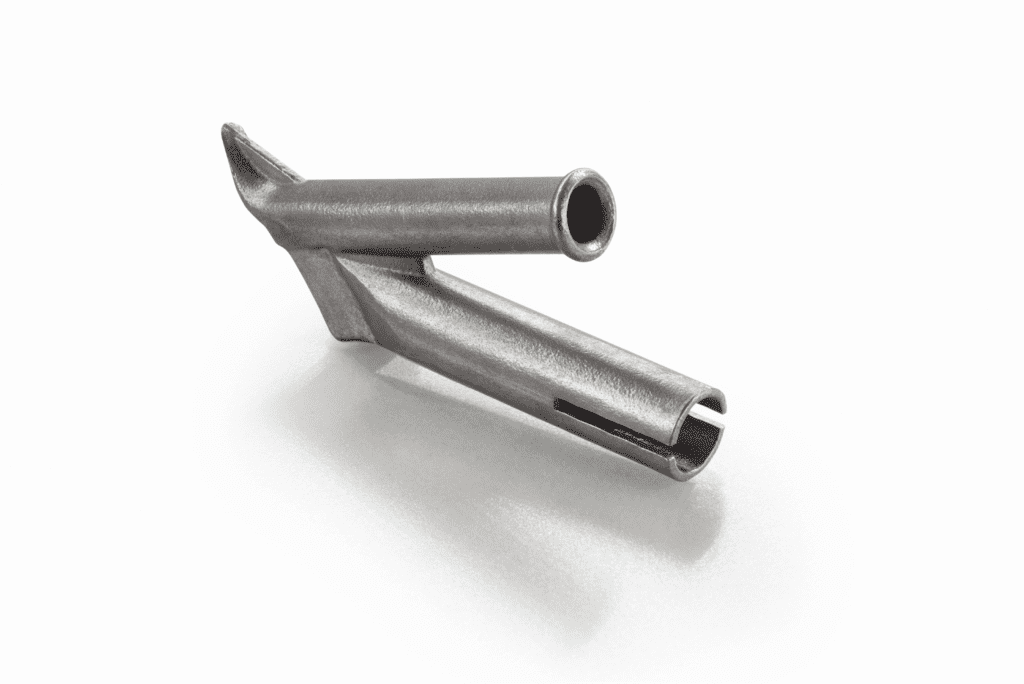

Art-Nr. 5022
Schnellschweissdüse 5 mm rund für Polyolefin, steckbar auf 4000

Art-Nr. 5005
Schnellschweissdüse 3 mm rund, schraubbar M10

Art-Nr. 5009
Schnellschweissdüse 7,5 mm dreikant, schraubbar M10

Item no. 6991
28mm PTFE pressure roller with ball bearings

Item no. 6995
45mm 45° silicone pressure roller with ball bearings

Item no. 7000
45mm silicone pressure roller, double arm

Item no. 7006
45mm 45° silicone pressure roller

Item no. 6992
45mm PTFE pressure roller with ball bearings

Item no. 6996
80mm silicone pressure roller with ball bearings

Item no. 7001
45mm silicone pressure roller, single arm

Item no. 7007
Pressure roller for custom seal 7mm

Item no. 6993
Brass penny roller 30mm

Item no. 6997
45mm silicone pressure roller with ball bearings, single arm

Item no. 7002
80mm silicone pressure roller

Item no. 7009
Pressure roller for custom seal 9mm

Item no. 6994
28mm silicone pressure roller with ball bearings

Item no. 6998
45mm silicone pressure roller with ball bearings, double arm

Item no. 7005
5mm welding rod pressure roller

Item no. 5021
Trimming guide

Item no. 7018
Trimming knife

Item no. 7010
Cutter

Item no. 7020
Seam trimmer

Item no. 7011
Hand groover

Item no. 7026
Brass cleaning brush for speed weld nozzles 3-5mm

Item no. 7014
Seam probe tester

Item no. 7025
Tool case

Item no. 2007
Heating element 230V 1500W

Item no. 2011
Heating element 120V 1600W

Item no. 4011
Insulating sleeve

Item no. 2008
Heating element 120V 1300W

Item no. 2009
Heating element 120V 1650W
Application areas

Advertising banner welding and tarpaulin welding

Processing of PVC floor coverings and linoleum

Repair of car tarpaulins, tents and plastic

Shrinking of foils, molded parts and cables

Separating and merging of synthetic threads and fabrics

Forming of plastic and thermoplastic semi-finished products

Processing of all thermoplastic hard materials in plastic construction and container construction

Sterilizing packaging materials or used in food processing

Removal of plastic press burrs and shine of plastic surfaces

Use in electromechanical work

Flat roof membrane welding

Smoothing pills and dragees



Shrinking of hoses, packaging foils

Construction and repair of aquaculture and boats

Sealing pools and ponds
