FORSTHOFF-F
Highlights

for welding thermoplastic floors and linoleum

with automatic wall switch-off

safe operation is ensured by a three-point support of the machine housing

universal unwinding device
Description

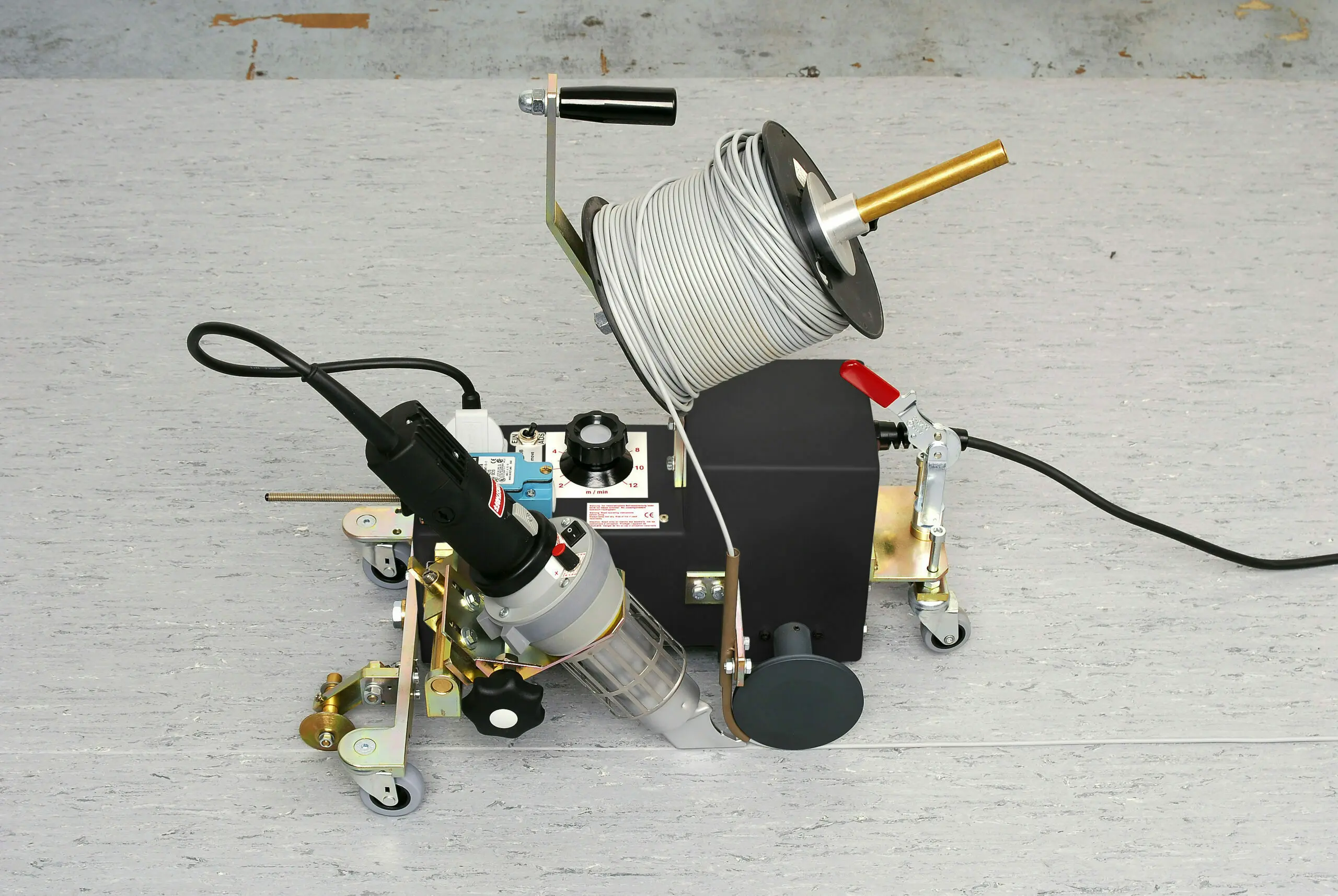

The efficient floor welding machine Forsthoff-F is suitable for welding thermoplastic floors and linoleum.
With the automatic welding machine FORSTHOFF-F, PVC floor coverings can be welded as well as fusion welding and sealing of linoleum coverings.
The heating power of 4000 W 230 V AC is electronically controllable from 20 to 700°C. Furthermore, the device has an infinitely variable speed setting from 0 to 19 meters/min and can thus be matched to the individual types of material.
The smooth unwinding of the welding wire is ensured by a high-temperature-resistant coating of the pressure roller and wire guide. The universal unwinding device is suitable for all common wire coils.
The device is fully equipped ready for welding and also has an automatic wall switch-off. After the welding head has been pivoted in, the machine starts up automatically. The safe running is predetermined by a three-point support of the machine housing.
Technical specifications
Voltage:
230V; 120V
Power:
3000W 230V; 2200W 120V
Frequency:
50/60 Hz
Temperature:
20 - 700°C
Dimensions:
Length 520 mm, width 310 mm, height 330 mm (without guide handle)
Weight:
21,0 kg
Conformity mark
CE; EAC
Protection class:
II /
Accessories
- Heating elements

Item no. 3056
Heating element 230V 3000W
Application areas

Floor laying

Floor construction

Flooring requirements
