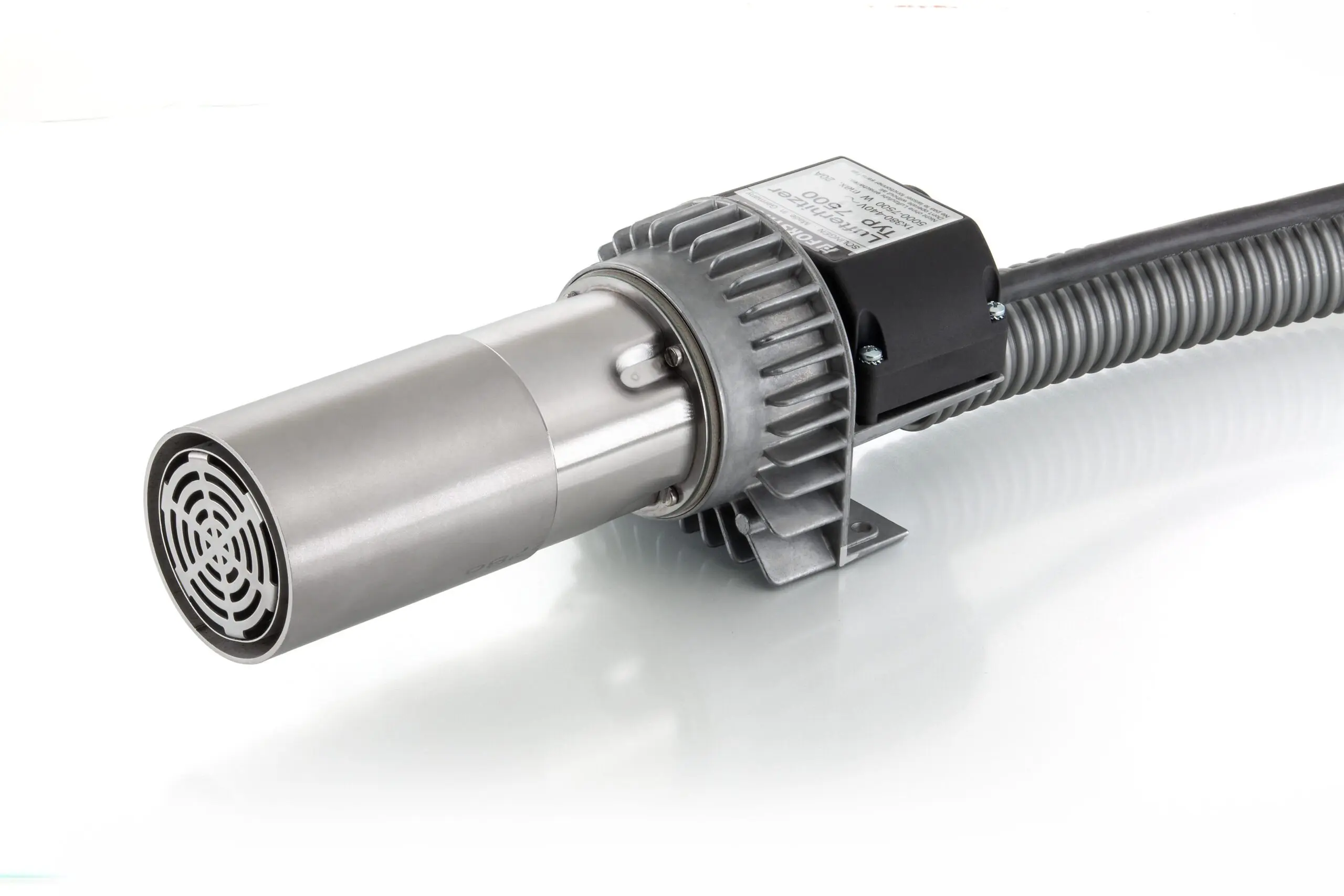

Industrial Hot Air Device Type 7500
Highlights

High power air heater up to 10kW for continuous use

Available in a wide range of performance variants

Integration into professional production processes

Electronically controlled and fully adjustable
Description
The high performance industrial hot air device type 7500 is the perfect air heater for production processes. This powerful air heater can be used in continuous operation at up to 10kW.
The powerful air heater type 7500 is suitable for installation in equipment, fixtures, heating ducts and on conveyor belts due to its sturdy and small design.
The heat output of either 5000 W, 7500 W or 10000 W is electronically controlled and is infinitely adjustable. The air heater can be delivered without electronics upon request. The maximum temperature is 700 °C.
The Type 7500 operates with an external air supply, like all of our air heaters, making it essentially maintenance-free and suitable for continuous use. The air outlet can be diffused, centered and modified for unique applications using wide slot nozzles up to 200 mm wide.
Technical specifications
Voltage:
230 V - 480 V
Frequency range:
50Hz - 60Hz
Power:
5000W - 10kW
Air flow:
500 - 1500 I/min
Max. air pressure:
1 bar
Max. Temperature:
700°C
Max. ambient temperature:
65°C
Min. supply air temperature:
0°C
Max. supply air temperature:
65°C
Noise emission level:
< 70dB
Protection class:
II /
Weight:
2,400 kg
Accessories
- Nozzles
- Heating elements

Item no. 4023
Wide slot nozzle 200 x 5 mm

Item no. 4024
Wide slot nozzle 300 x 5 mm

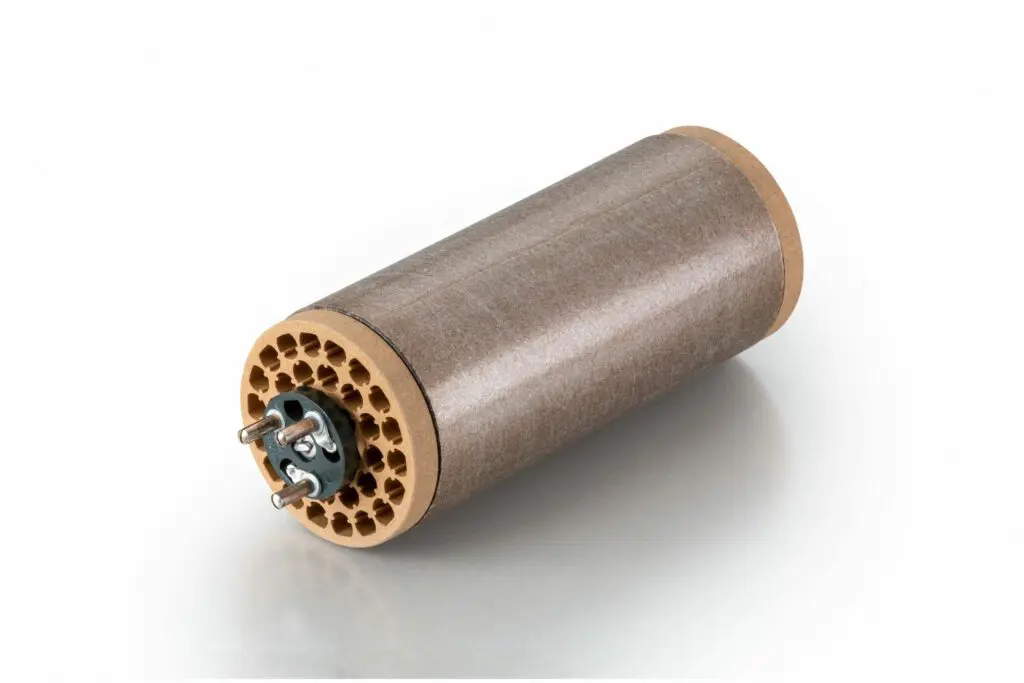

Item no. 3200
Heating element 220-240V 5000W

Item no. 3210
Heating element 380/440V 5000W

Item no. 3220
Heating element 380/440V 7500W

Item no. 3230
Heating element 440-480V 10000W
Application areas

Packaging industry

Mechanical engineering

Conveyor belt technology and assembly line technology

Drying process

Pharmaceutical industry

Sterilization process

Food industry

Foil shrinking

Wine and spirits bottling plants

Coating process

Laminating process
