Industrial Hot Air Device Type 3000-E
Highlights
Industrial air heater for continuous use
Professional, industrial hot air technology
Integrated detection for device overheating
is fully adjustable and electronically controlled
Description

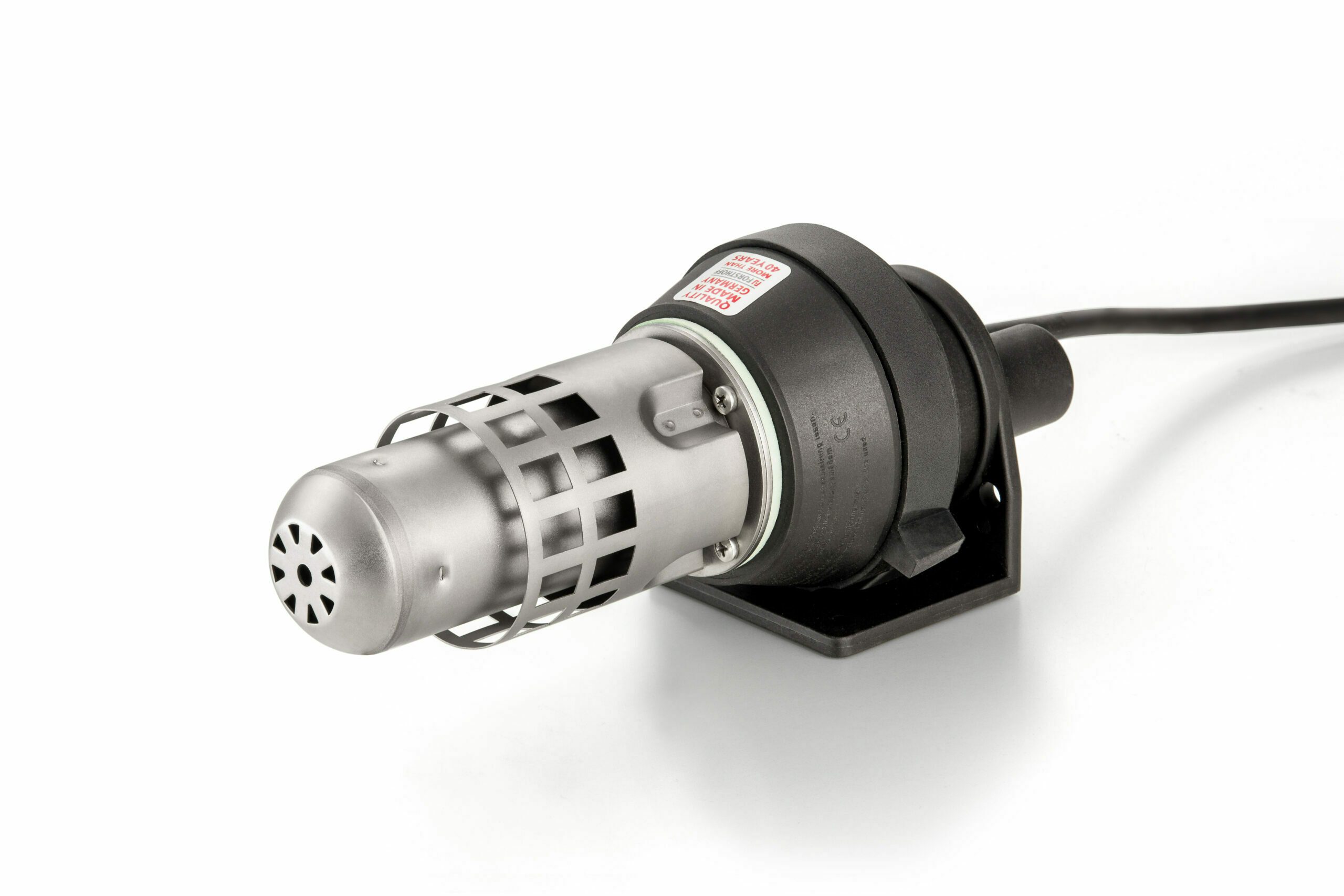

The industrial hot air device type 3000-E is the optimal air heater for production processes. Our air heaters are durable and suitable for continuous operation, for example in production machines.
There are two versions of the air heater type 3000-E available: as a heat stage device with 3 heating stages in 230 V alternating current and as an electronic version with infinitely variable temperature adjustment in 230 V alternating current or 400 V three-phase current. The heating power is 3000 W and reaches a maximum temperature of 700 °C.
The air heater type 3000-E is connected to an external air supply and is therefore suitable for absolute continuous use. Air heaters are mounted on conveyor belts and in machines. They are also used in heating ducts and on various devices. The air outlet can be altered with different wide slot nozzles if necessary.
Technical specifications
Voltage:
230 V - 400 V
Frequency range:
50Hz - 60Hz
Power:
3000W
Air flow:
500 - 1500 I/min
Max. Air pressure:
1 bar
Max. Temperature:
700°C
Max. Ambient temperature:
65°C
Min. Supply air temperature:
0°C
Max. Supply air temperature:
65°C
Noise emission level:
< 70dB
Protection class:
II /
Weight:
1,000 kg
Accessories
- Nozzles
- Heating elements
Item no. 4021
Wide slot nozzle 150 x 1 mm
Item no. 4022
Wide slot nozzle 150 x 10 mm
Item no. 4030
Item no. 4031

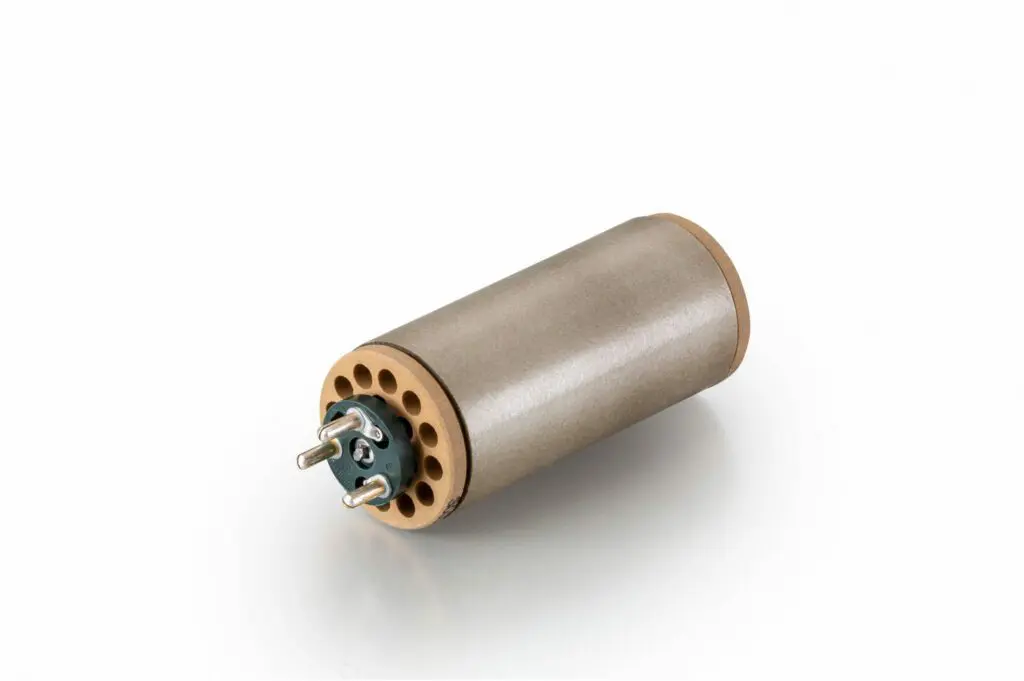

Item no. 3060
Heating element 230V 3000W
Item no. 3061
Heating element 400V 3000W
Item no. 3056
Heating element 230V 1200+1800W
Application areas
Packaging industry
Mechanical engineering
Conveyor belt technology and assembly line technology
Drying process
Pharmaceutical industry
Sterilization process
Food industry
Foil shrinking
Wine and spirits bottling plants
Coating process
Laminating process
