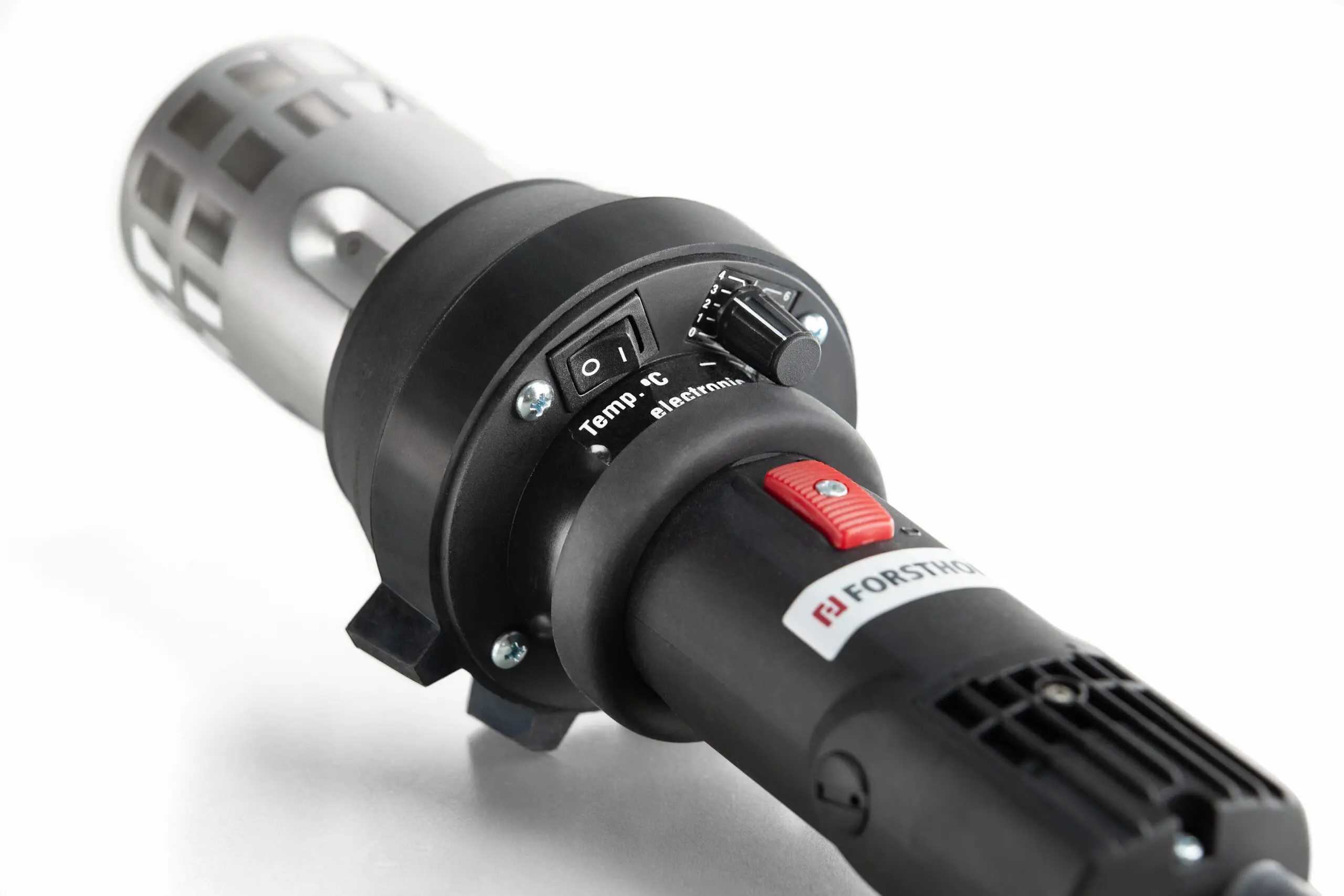

Grand-L-electronic
Highlights
Powerful hot air blower up to 3400 W
Robust and construction site suitable heat gun
Strong air volume of 300 litres/minute
Ideal for heating, shrinking and drying
description
The Grand-L-electronic hot air blower is used wherever hot air flows are required for the purpose of heating, warming up, deforming, shrinking and activating.
The heating power of either 3000 W or 3400 W 230 V is infinitely variable from 20 °C to 700 °C. The device features new and very reliable temperature control electronics. Depending on the nozzle, the air output can reach up to 300 litres/min. The air flow can be altered through various attachable nozzles, allowing for a wide range of applications.
In addition, the device has a cold stage without having to adjust the heating preselection. The collector brushes of the motor can be changed several times and thus enable continuous operation of the device. The carbon brushes can be easily changed from the outside without opening the appliance. and only need to be replaced after around 1,500 hours. The carbon brushes of our hand welders are equipped with a switch-off mechanism which prevents damage to the motor after the carbon brushes have been used up.
The Grand-L-electronic can be ordered with either a 20mm or 50mm basic nozzle.
Technical specifications
Power:
3000W 230V; 3400W 230V; 2200W 120V
Frequency range:
50/60Hz
Temperature:
20-700 °C, infinitely adjustable
Dimensions:
Ø 340 x 95 mm, handle Ø 48 mm
Weight:
1,65 kg with 3m connecting cable
Conformity mark
CE; EAC
Protection class:
II /
(Double insulated)
(Double insulated)Accessories
- Nozzles
- Tool case
- Heating elements
Item no. 4021
Item no. 4032
Wide slot nozzle 70 x 10 mm [only for version without heat protection]
Item no. 4022
Item no. 4030
Item no. 4031
Item no. 7025
Item no. 3064
Heating element 230V 3000W
Item no. 3065
Heating element 230V 3400W
Item no. 3066
Heating element 120V 2200W
Application areas
Installation in machines and on conveyor belts
Use in electromechanical work
Repair of plastic parts on automobiles and motorcycles
Shrinkage of heat-shrinkable hoses and packaging foils
Heating for forming thermoplastic semi-finished products
Drying of water-moist surfaces
Forming and sealing of blister packs
Deformation and machining of prostheses
Thawing of frozen water pipes
Removal of paints and varnish
Activating and releasing solvent-free adhesives and hot-melt adhesives
All types of drying and heating processes
Shrinkage of packaging films and moulded parts
Separating and merging of synthetic threads and fabrics
Sterilization of packaging materials
Removal of plastic press burrs and shine of plastic surfaces
