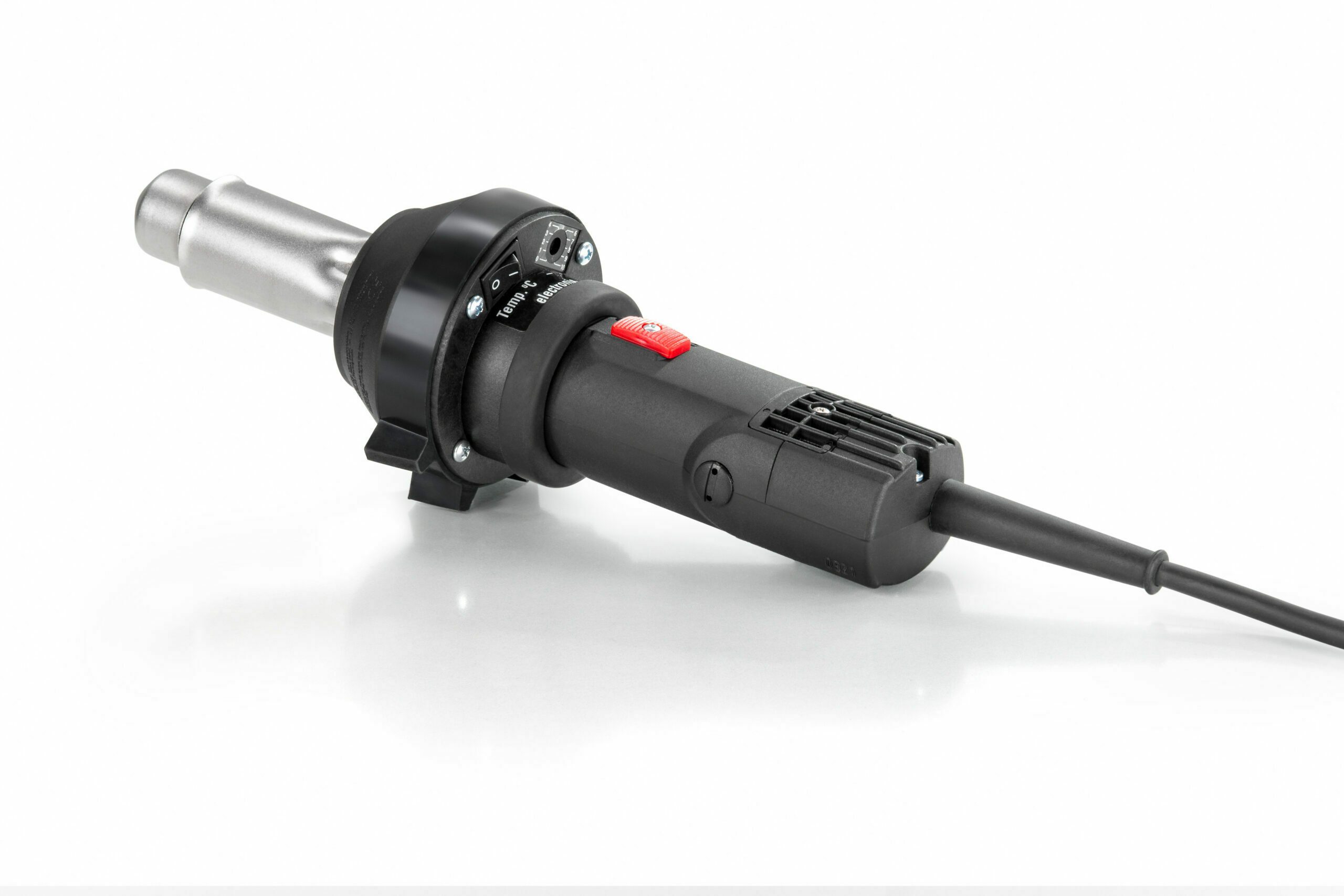

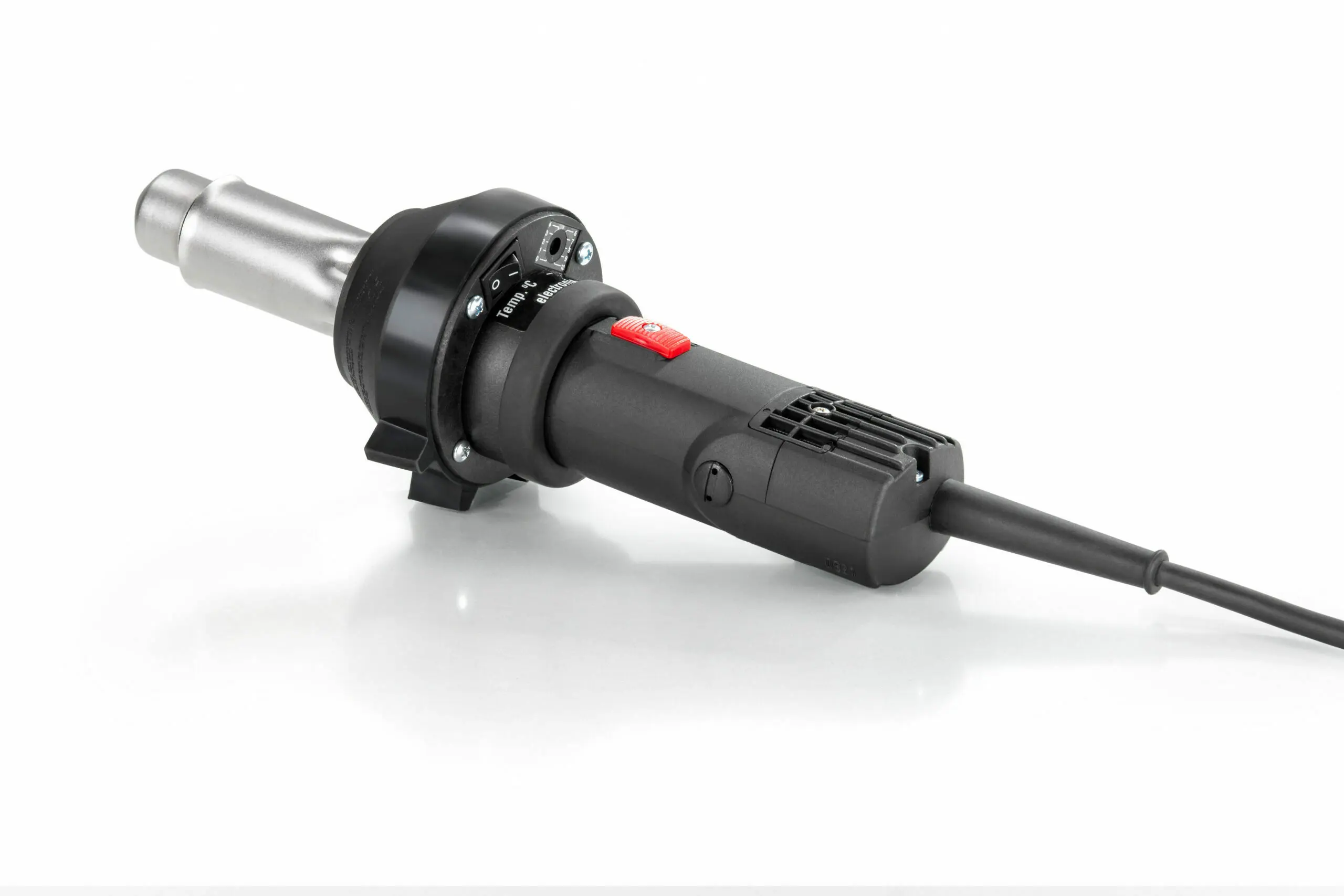

Quick-L-electronic with recessed potentiometer







Highlights
















handy and light hand welding tool without a rotary knob









special version with recessed temperature potentiometer









additional cold stage without adjusting the heater preselection









ideal for special machine construction
Description







The tried and tested Quick-L-electronic hot air welder in a special version with recessed potentiometer for apparatus construction, container construction and special machine construction.
This handy and light manual welding device is distinguished by the fact that it does not have a rotary knob, but a recessed potentiometer, which can be adjusted, for example with a screwdriver. This makes it possible to use the device on extruders, devices and machines without adjusting the heating preselection. In addition, this hot air device has an additional cold stage without adjusting the heating preselection.
Like the standard version of the Quick-L-electronic 1500W, this device is compatible with a wide range of nozzles.
The carbon brushes of the motor can be changed several times and thus enable continuous operation of the device. The carbon brushes can be changed easily from the outside without opening the tool and only need to be replaced after around 1,500 hours. The carbon brushes of our hand welders are equipped with a switch-off mechanism which prevents damage to the motor after the carbon brushes have been used up.
Technical specifications







Voltage:
230 V; 120V
Power:
max. 1600W
Frequency:
50/60 Hz
Temperature:
20 - 700°C
Air flow:
300 l/min
Dimensions:
Ø 320 x 95 mm, handle Ø 48 mm
Weight:
1.2 kg with 3m connecting cable
Conformity mark
CE; EAC
Protection class:
II /


Accessories







- Nozzles
- Speed welding nozzles
- Pressure rollers
- General Accessories
- Tool case
- Heating elements


Item no. 4000
Tubular nozzle 5mm


Item no. 4002.90
Angle nozzle 20mm, 90° push-fit


Item no. 4005
Tubular nozzle 15mm


Item no. 4060
Wide slot nozzle 60mm


Item no. 4002
Wide slot nozzle 20mm


Item no. 4003
Wide slot nozzle 40mm



Item no. 4007
Nozzle Adapter for M10 screw-fit nozzles


Item no. 4090
Wide slot nozzle 90mm


Item no. 4002.15
Angle nozzle 20mm, 15° push-fit


Item no. 4003.60
Angle nozzle 40mm, 60° push-fit



Item no. 4008
Nozzle Adapter for M14 screw-fit nozzles


Item no. 5016
Spoon reflector


Item no. 4002.60
Angle nozzle 20mm, 60° push-fit


Item no. 4004
Wide slot perforated nozzle 40mm


Item no. 4000.V
5mm tubular elongated 150mm nozzle


Item no. 9701
Tubular nozzle 5mm, re-inforced


Item no. 5000
5.7mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5012
5mm round speed weld nozzle (for nozzle 4000)


Item no. 5015
Tacking jet (for nozzle 4000)


Item no. 5002
5.7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5006
4mm round speed weld nozzle (for nozzle 4007)


Item no. 5017
Tacking jet curved (for nozzle 4007)


Item no. 5001
7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5013
5mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5003
7mm triangular speed weld nozzle (for nozzle 4007)


Item no. 5007
5mm round speed weld nozzle (for nozzle 4007)


Item no. 5010
3mm round speed weld nozzle (for nozzle 4000)


Item no. 5014
7.5mm triangular speed weld nozzle (for nozzle 4000)


Item no. 5004
Tacking jet (for nozzle 4007)


Item no. 5008
5mm round speed weld nozzle (for nozzle 4007)


Item no. 5011
4mm round speed weld nozzle (for nozzle 4000)


Item no. 5022
5mm round speed weld nozzle for polyolefin (for nozzle 4000)


Item no. 5005
3mm round speed weld nozzle (for nozzle 4007)


Item no. 5009
7.5mm triangular speed weld nozzle (for nozzle 4007)


Item no. 6991
28mm PTFE pressure roller with ball bearings


Item no. 6995
45mm 45° silicone pressure roller with ball bearings


Item no. 7000
45mm silicone pressure roller with ball bearings, double arm


Item no. 7006
45mm 45° silicone pressure roller


Item no. 6992
45mm PTFE pressure roller with ball bearings


Item no. 6996
80mm silicone pressure roller with ball bearings


Item no. 7001
45mm silicone pressure roller, single arm


Item no. 7007
Pressure roller for custom seal 7mm


Item no. 6993
Brass penny roller 30mm


Item no. 6997
45mm silicone pressure roller with ball bearings, single arm


Item no. 7002
80mm silicone pressure roller


Item no. 7009
Pressure roller for custom seal 9mm


Item no. 6994
28mm silicone pressure roller with ball bearings


Item no. 6998
45mm silicone pressure roller with ball bearings, double arm


Item no. 7005
5mm welding rod pressure roller


Item no. 5021
Trimming guide


Item no. 7018
Trimming knife


Item no. 7010
Cutter


Item no. 7020
Seam trimmer


Item no. 7011
Hand groover


Item no. 7026
Brass cleaning brush for speed weld nozzles 3-5mm


Item no. 7014
Seam probe tester


Item no. 7025
Tool case



Item no. 2007
Heating element 230V 1500W


Item no. 4011
Insulating sleeve



Item no. 2011
Heating element 120V 1600W
Application areas
















Apparatus and tank construction









Container construction









Blower for extrusion welder









Special machine construction
